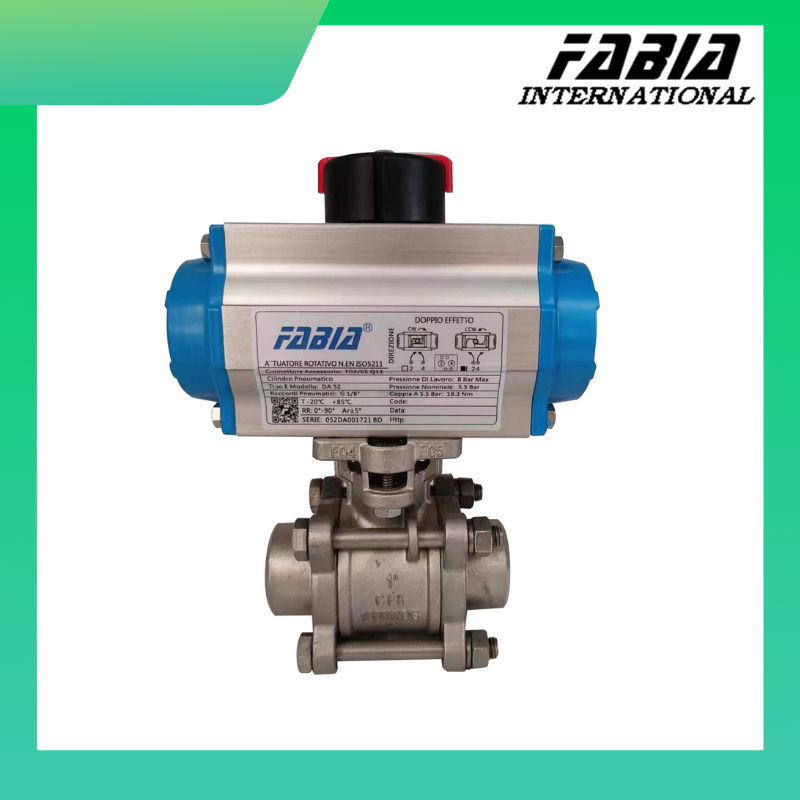

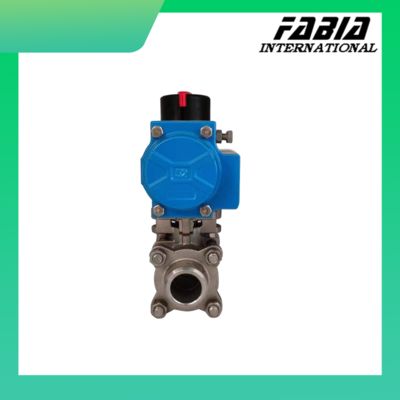

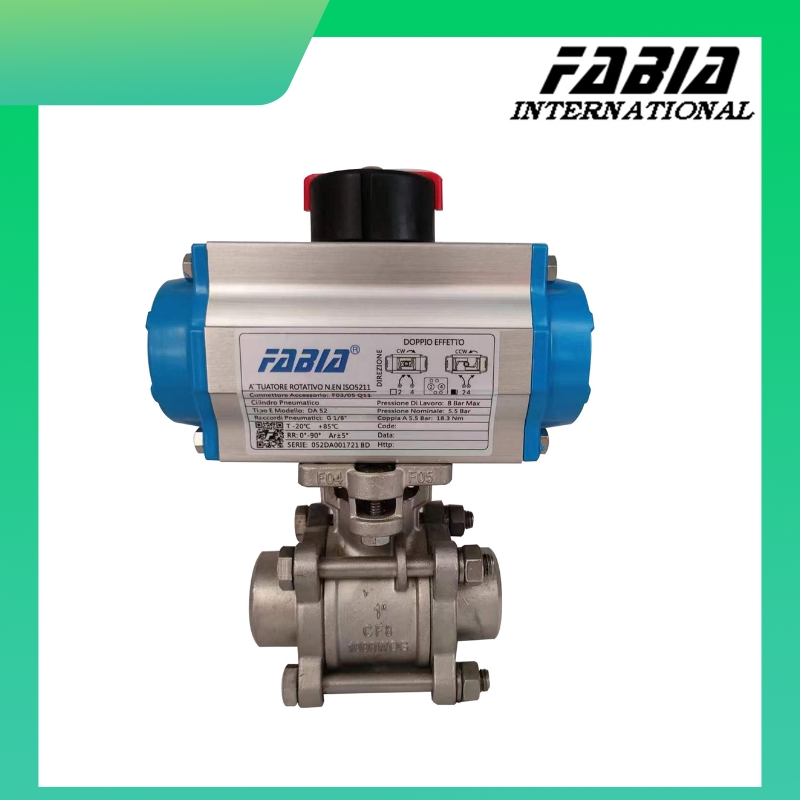

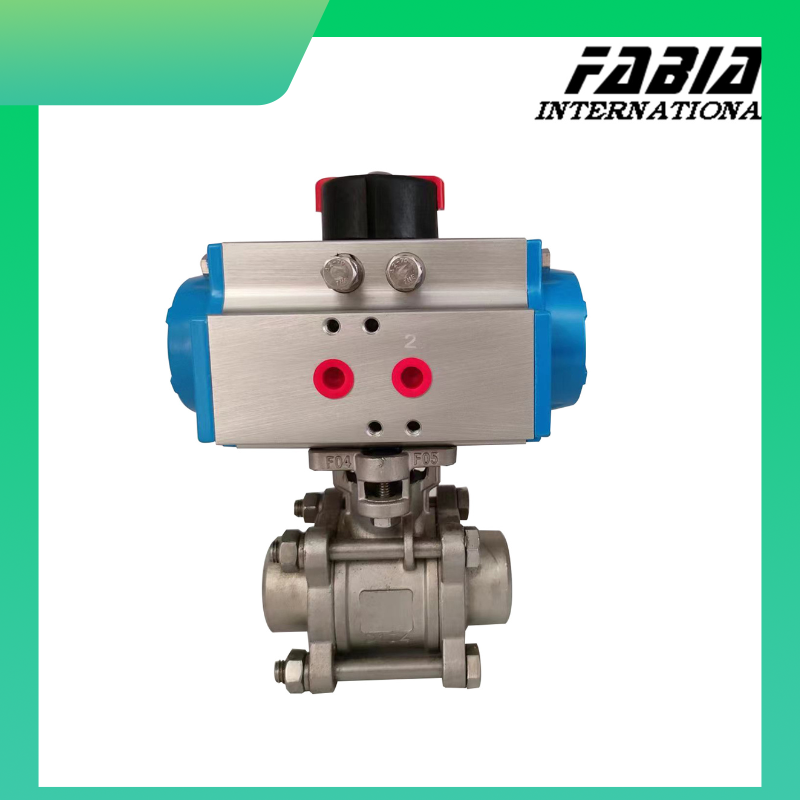

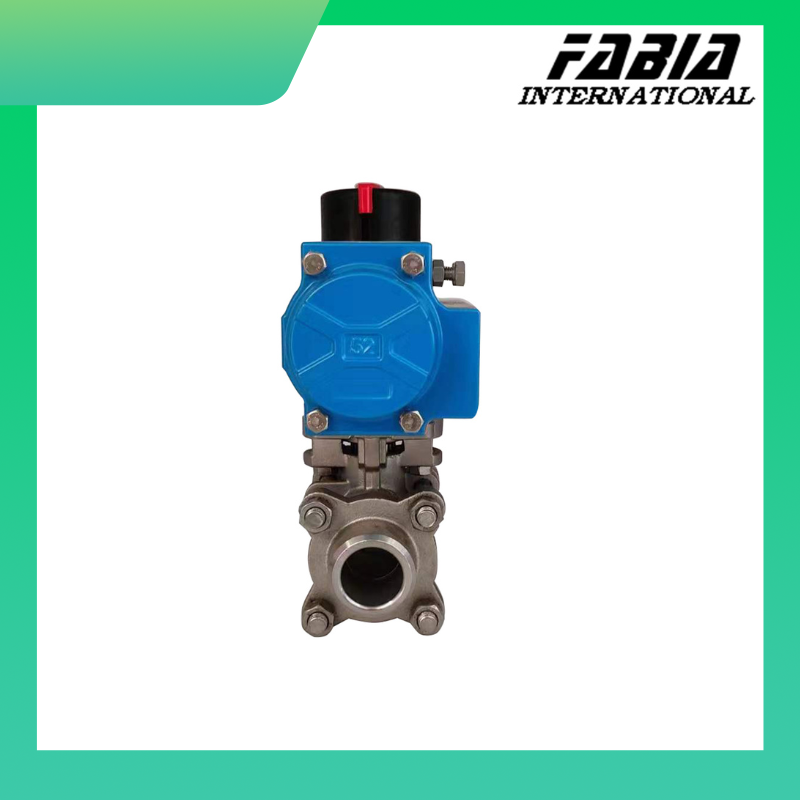

Pneumatic Ball Valve Air Actuated Stainless Steel Tooth Two Way Internal
| Luogo di origine | Cina |
|---|---|
| Marca | FABIA |
| Certificazione | ISO9001,CE,CCS,DNV |
| Numero di modello | 1/8 di pollice ～ 36 pollici |
| Documento | Brochure del prodotto PDF |
| Quantità di ordine minimo | 1 set |
| Prezzo | Negoziabile |
| Imballaggi particolari | Cartoni/custodie in legno |
| Tempi di consegna | 15-30 giorni di lavoro |
| Termini di pagamento | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Capacità di alimentazione | 100-1000 set a settimana |
Contattatemi per campioni e buoni.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Materiale della valvola | Acciaio inossidabile | Controllo della valvola | Pneumatico |
|---|---|---|---|
| Collegamento della valvola | Filettato | Nome prodotto | Valvola a sfera pneumatica in acciaio inossidabile |
| Pressione della valvola | PN16-40 | Tipo di valvola | Valvole a sfera pneumatiche |
| Temperatura della valvola | -20 ℃ ~+150 ℃ |
Descrizione di prodotto
FABIA Stainless Steel Pneumatic Ball Valve Air Actuated Two Way Internal Tooth
1. Description:
Characteristics of pneumatic internal ball valve: angular stroke output torque, open quickly, stable and reliable, widely used.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Stainless Steel Pneumatic Ball Valve Air Actuated Two Way Internal Tooth | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Fluid resistance is small, pneumatic ball valve is one of the least fluid resistance in all valve classes, even if it is a reduced pneumatic ball valve, its fluid resistance is quite small.
- Thrust bearing reduces the friction torque of the valve stem, which can make the valve stem operate smoothly and flexibly for a long time.
- Sealing performance of the seat is good, the sealing ring made of polytetrafluoroethylene and other elastic materials is easy to seal, and the sealing capacity of the pneumatic ball valve increases with the increase of the medium pressure.
- Valve stem seal is reliable, because the valve stem is only as if rotating without lifting movement, the packing seal of the valve stem is not easy to destroy, and the sealing capacity increases with the pressure of the medium.
- Because polytetrafluoroethylene and other materials have good self-lubrication, and the friction loss of the ball is small, so the service life of the pneumatic ball valve is long.
- Anti-static function: set the spring between the ball, valve stem and valve body, which can export the static electricity generated by the switching process.
- Lower mounted valve stem and valve stem head convex step to prevent the valve stem ejecta, such as fire caused by the valve stem seal damage, the convex step and the valve body can also form metal contact to ensure the valve stem seal.
