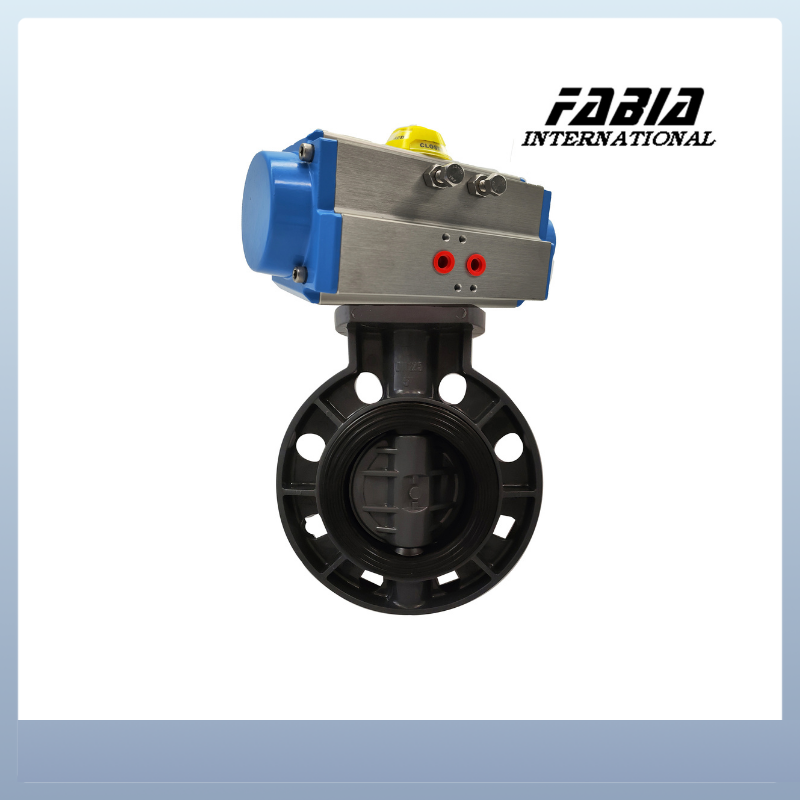

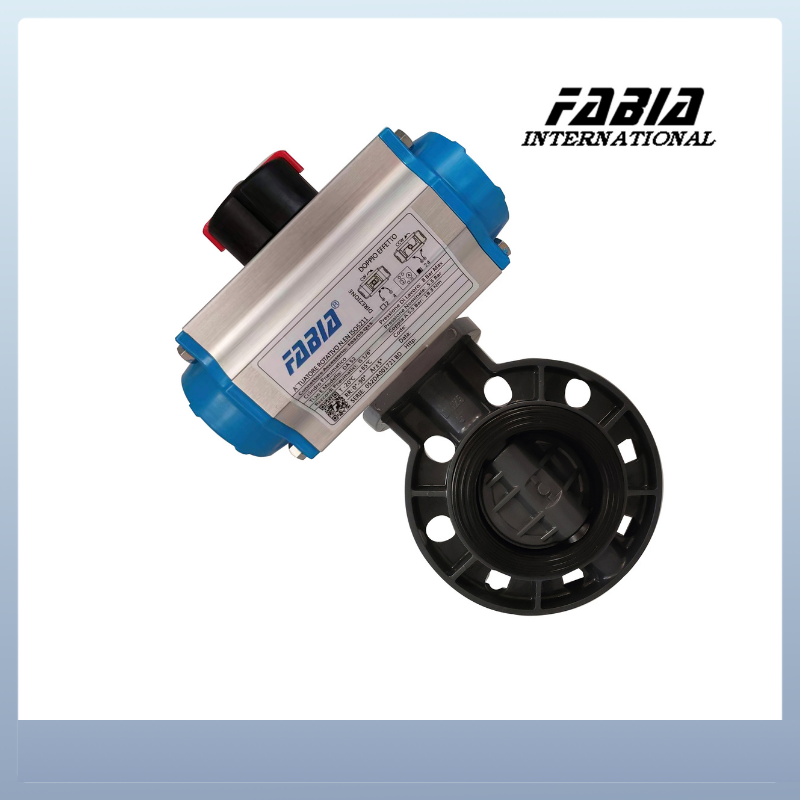

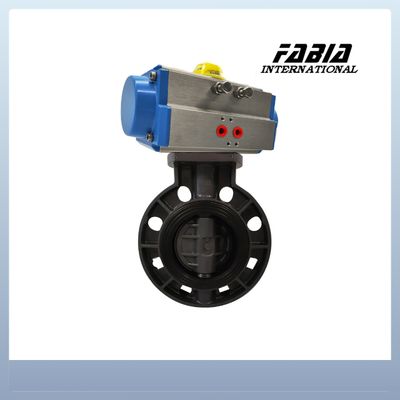

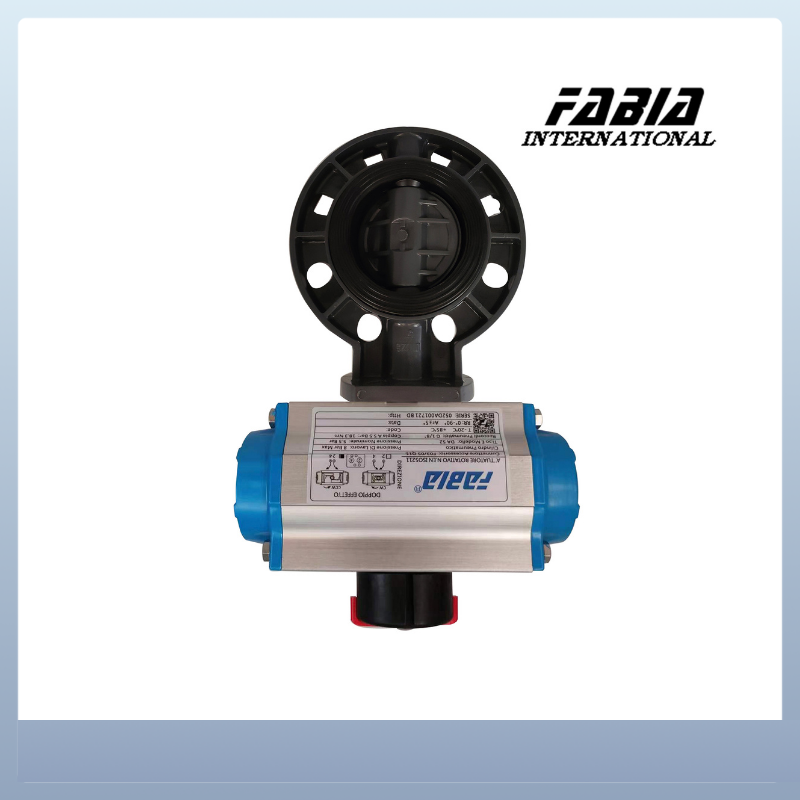

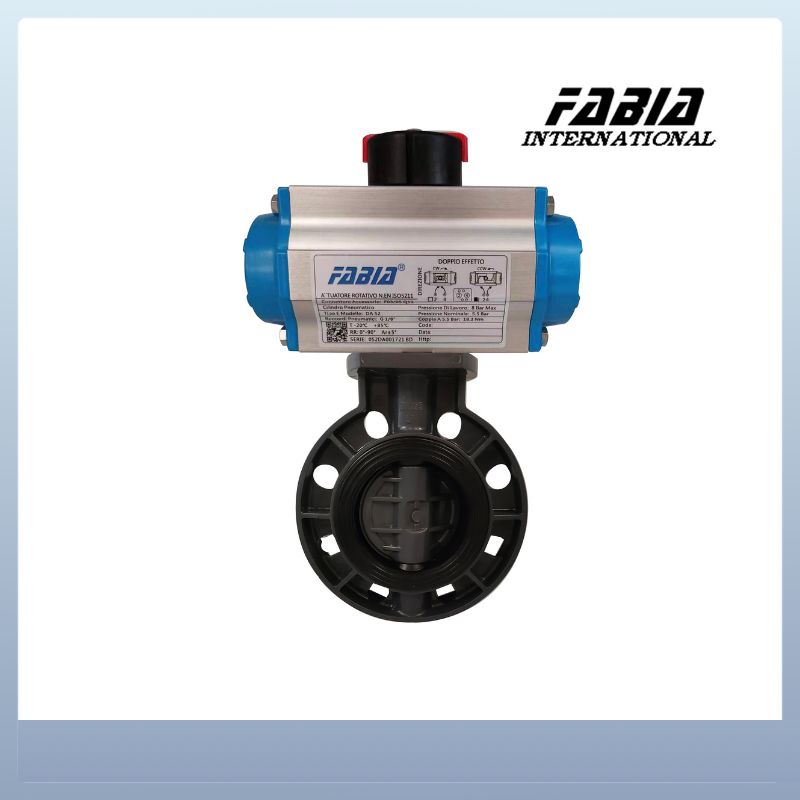

Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective

  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
Luogo di origine Cina
Marca FABIA
Certificazione ISO9001,CE,CCS,DNV
Numero di modello 1/8 di pollice ～ 36 pollici
Documento Brochure del prodotto PDF
Quantità di ordine minimo 1 set
Prezzo Negoziabile
Imballaggi particolari Cartoni/custodie in legno
Tempi di consegna 15-30 giorni di lavoro
Termini di pagamento L/C, D/A, D/P, T/T, MoneyGram, Western Union
Capacità di alimentazione 100-1000 set a settimana

Contattatemi per campioni e buoni.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome prodotto Valvola a farfalla a pinza pneumatica Tipo di valvola Farfalla pneumatica
Materiale della valvola PVC Attuatore di valvola Pneumatico
Collegamento della valvola MORSETTO Sigillo della valvola EPDM
Disco della valvola PVC Pressione della valvola PN16
Temperatura della valvola -30℃~+135℃
Lasciate un messaggio
Descrizione di prodotto

FABIA Soft Seal Pneumatic Clamp Butterfly Valve



1. Description:



Used in petroleum, chemical, light industry, pharmaceutical, paper, automobile and other industrial automatic control system for remote centralized control or local control equipment.



Can be widely used in petroleum, chemical, light industry, pharmaceutical, paper, automobile and other industrial automatic control system for remote centralized control or local control.



2. Specification:



FABIA Valve Parameter List
Valve type: Soft Seal Pneumatic Clamp Butterfly Valve
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt Clamp/Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D..........



3. Features:



  • Pneumatic butterfly valve, is in the introduction of foreign advanced technology on the basis of special design, carefully manufactured products.
  • Butterfly valve with travel limit switch, solenoid valve, triplet and 0.4-0.7MPa air source can realize switching operation, and send two pairs of passive contact signals to indicate the switch of the valve.
  • Using intelligent control and positioning, with domestic electrical valve positioner, input 4-20mADC signal and 0.4-0.7MPa air source can achieve intelligent control, to achieve the adjustment of pressure, flow, temperature, liquid level and other parameters.
  • Powered by compressed air, and the valve stem drives the spool to rotate 90 ° C in the valve body, which can realize the fully open - fully closed action.
  • Product is divided into metal seal and soft seal according to its sealing performance.
  • Advantages of compact structure, small size, reliable operation, good sealing, easy maintenance, convenient installation and strong adaptability.





Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective 0

Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective 1
