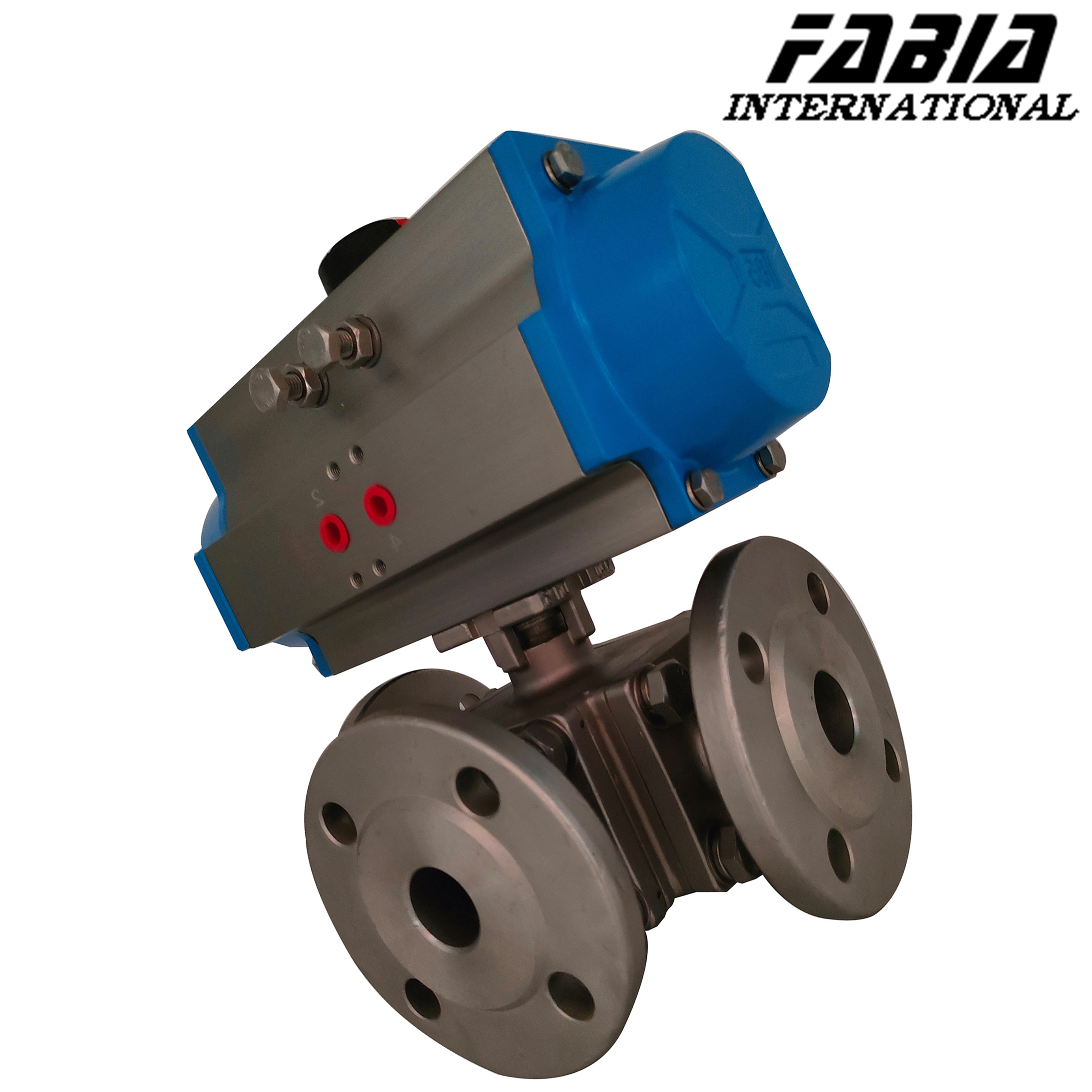

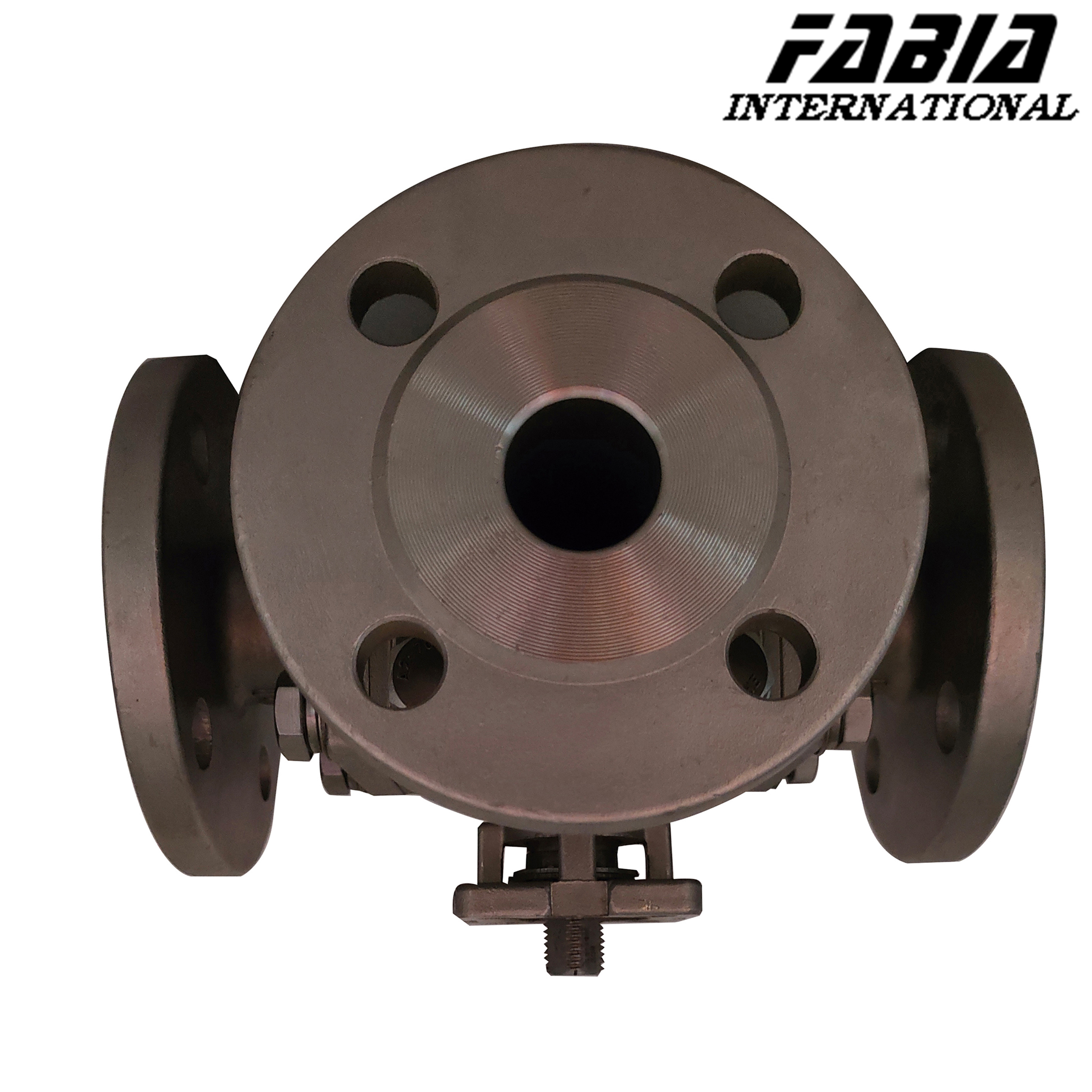

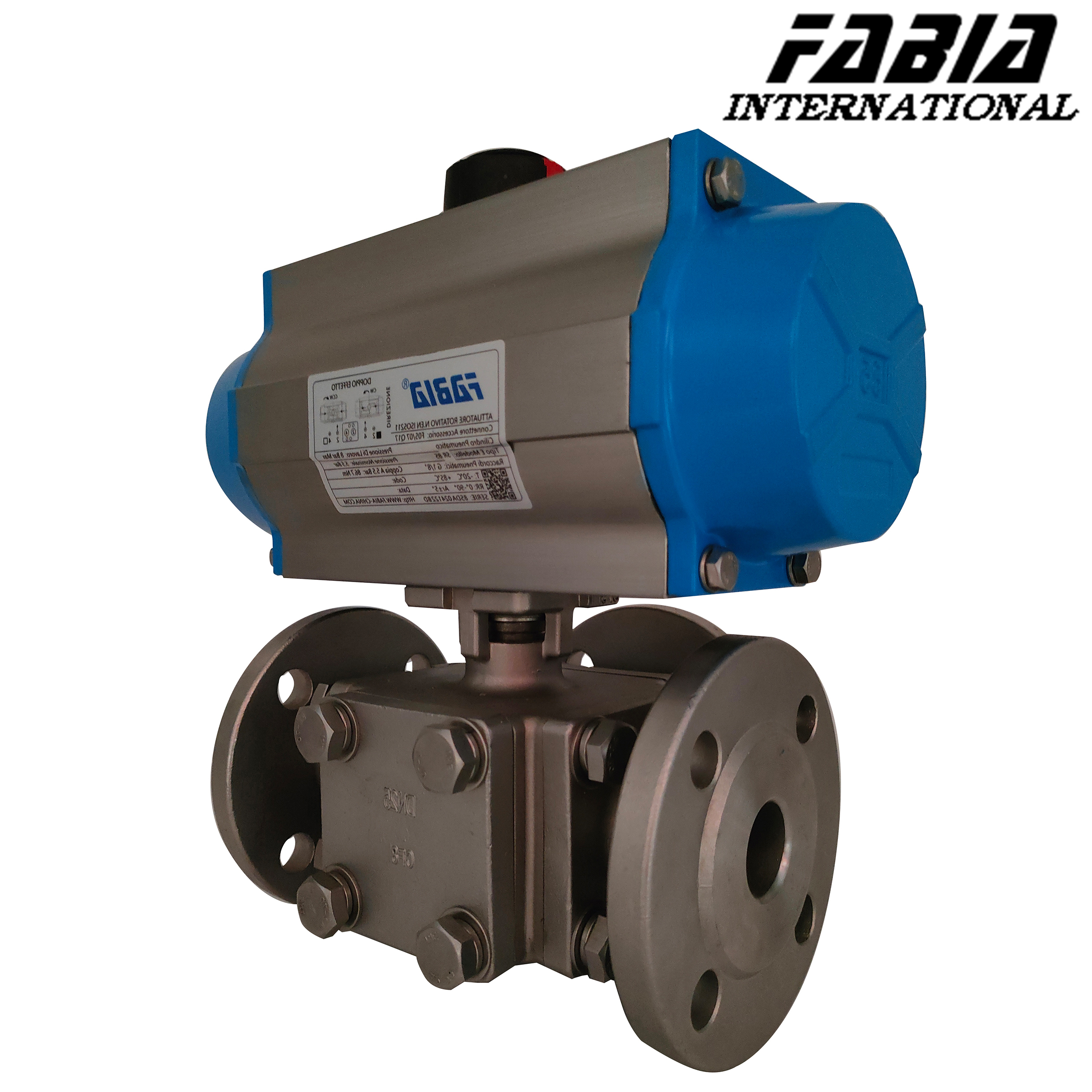

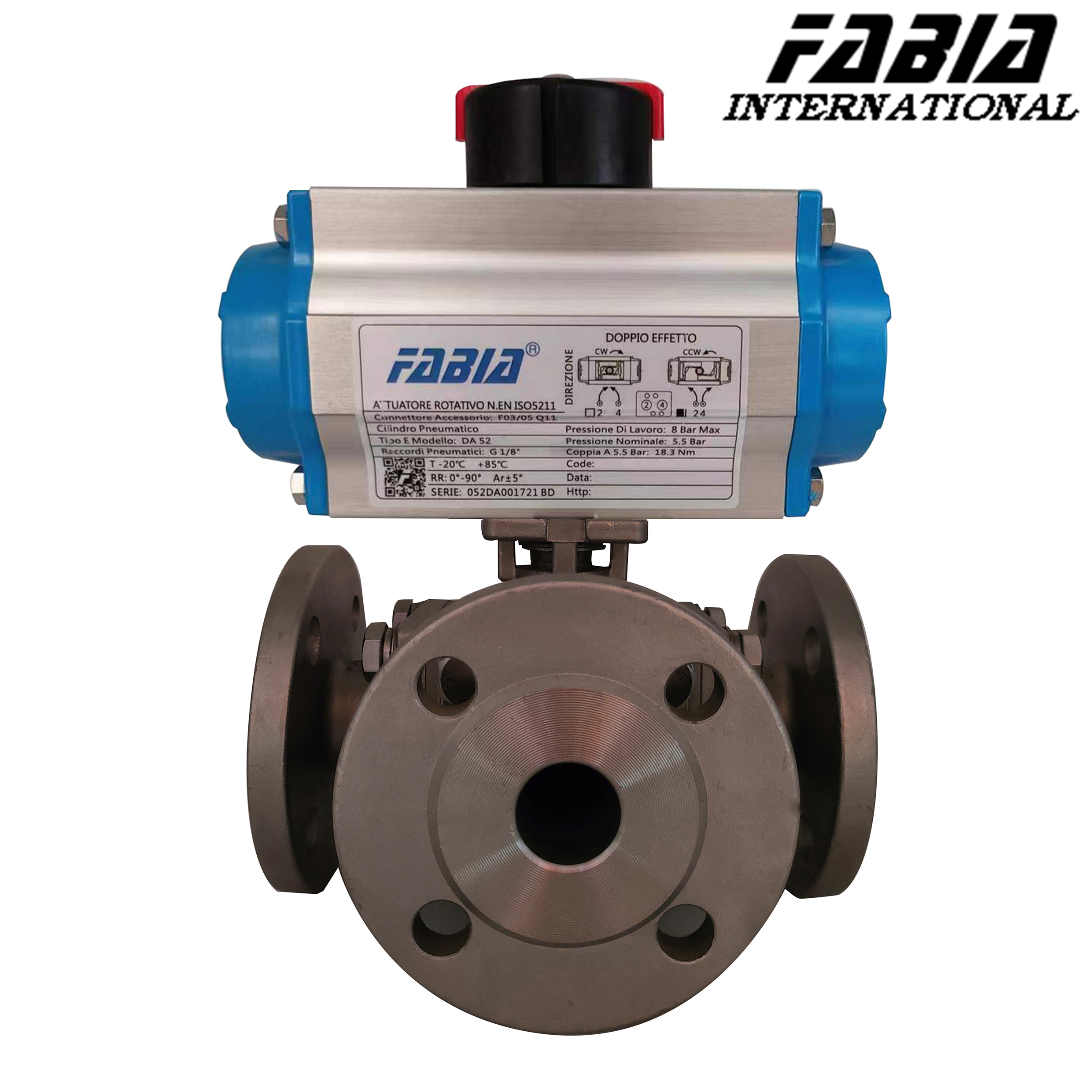

Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power
| Luogo di origine | Cina |
|---|---|
| Marca | FABIA |
| Certificazione | ISO9001,CE,CCS,DNV |
| Numero di modello | 1/8 di pollice ～ 36 pollici |
| Documento | Brochure del prodotto PDF |
| Quantità di ordine minimo | 1 set |
| Prezzo | Negoziabile |
| Imballaggi particolari | Cartoni/custodie in legno |
| Tempi di consegna | 15-30 giorni di lavoro |
| Termini di pagamento | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Capacità di alimentazione | 100-1000 set a settimana |
Contattatemi per campioni e buoni.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Nome prodotto | Valvola a sfera pneumatica a tre vie | Tipo di valvola | Valvole a sfera pneumatiche |
|---|---|---|---|
| Materiale | acciaio inossidabile | Operazione | Pneumatico |
| Connessione | Filettato | Pressione | 150-600 psi |
| Attuatore | Attuatore pneumatico | Posto a sedere | Ptfe |
| Temperatura | -30°C~+150°C | Connessione finale | Filettato |
Descrizione di prodotto
FABIA Pneumatic Ball Valve For Chemical, Petroleum, Electric Power
1. Description:
Pneumatic three-way ball valve, widely used in chemical, petroleum, power, food, medicine, refrigeration, aviation, aerospace and other industrial fields.
Three-way ball valve, for medium diversion, confluence, flow direction switching, any pipe can be used as an entrance or exit.
Pneumatic three-way ball valve is divided into pneumatic three-way L-type ball valve and pneumatic three-way T-type ball valve, which can meet different production process requirements.
2.Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Pneumatic Ball Valve For Chemical, Petroleum, Electric Power | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- The fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
- Simple structure, small size and light weight.
- Tight and reliable, the sealing surface material of the ball valve is widely used in plastic, good sealing, and has also been widely used in vacuum systems.
- Easy to operate, open and close quickly, from full open to full close as long as the rotation is easy to control at a distance.
- When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause the erosion of the sealing surface of the pneumatic three-way ball valve when it is passed.
